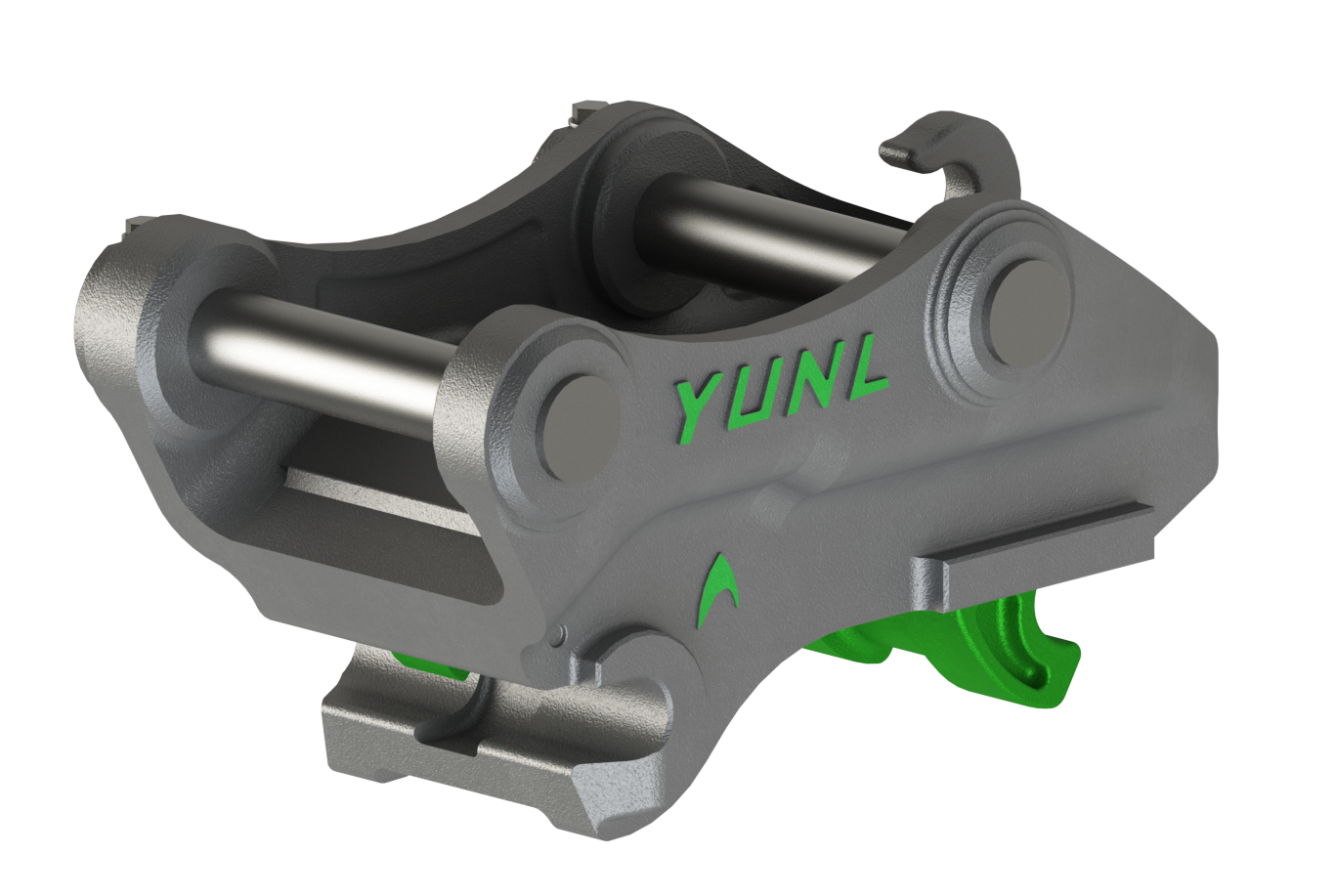

2025 YUNL X6
Starting from $1,800 receiving order 5~10 days
FREE Worldwide Shipping: First 100 Orders Only! 88 Left!
Zero
Hydraulic Leaks
245~350 mm
Ultra Large Pickup Range
5~7 ton
Machine Weight
SAFE: TRIPLE-LOCK DEFENSE | UNBREAKABLE GRIP. ZERO FAILURES.
THE POWER LOCK
Hardened alloy screw with genius thread design. Defies multi-ton forces and extreme vibration. No slip. No loose. Ever.
THE AUTO LOCK
Clutch engages in a split second. No hands needed. Full-tooth engagement for ultimate reliability under shock loads.
THE SAFETY LOCK
Certified failsafe block. Locks both shafts in sync for 99.9% security. Guarantees no accidental drop.
“Work with absolute confidence, knowing your tool is securely locked.”
- THE POWER LOCK: The Self-Locking Screw.
- THE AUTO LOCK: The Auto-Lock Clutch.
- THE SAFETY LOCK: The Safety Lock Block.
How it works

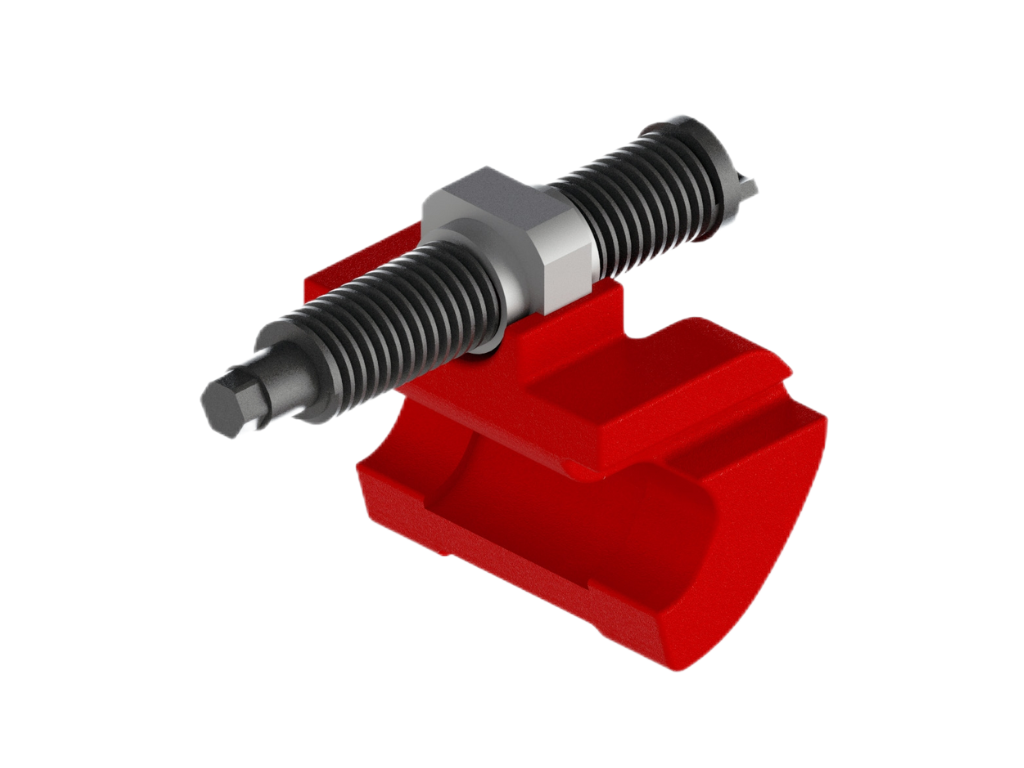

THE POWER LOCK
(Locks Tight and Stays Put.)
- MATERIAL & PROCESS: Manufactured from 42CrMo alloy steel, subjected to specialized heat treatment for superior tensile strength and fatigue resistance.
- DESIGN & MECHANICS: Our unique horizontal-push design isolates the screw to pure axial loads, eliminating shear and impact forces. The full-thread engagement between nut and screw is maintained regardless of center distance.
- PERFORMANCE: The proprietary thread profile delivers exceptional self-locking capability. It withstands intense vibration without fracture or loosening, reliably securing multi-ton loads on the slide jaw with zero backlash or stripping.

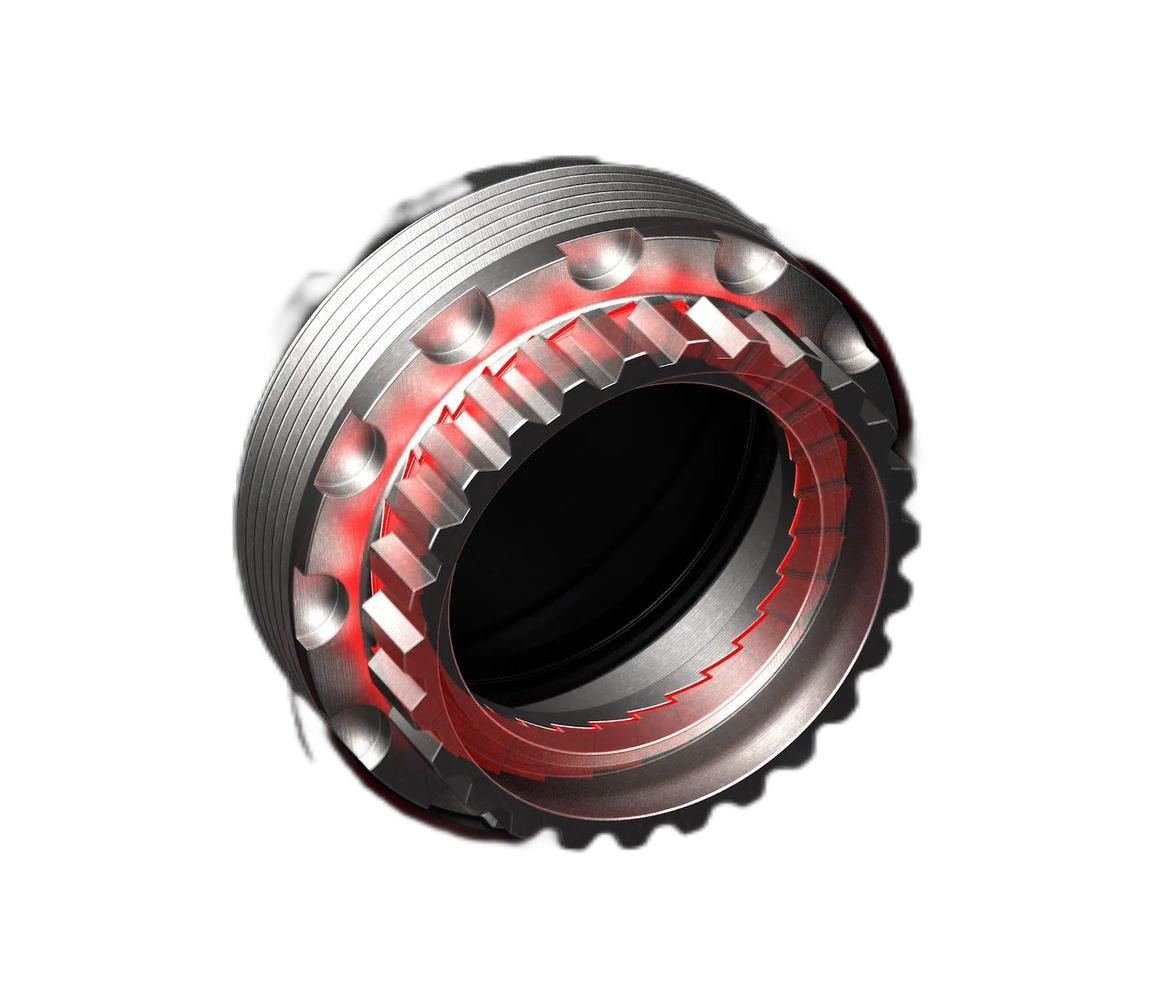

THE AUTO LOCK
(Locks Automatically)
- FUNCTION: The core intelligence of the system. This innovative clutch provides instantaneous, automatic engagement upon cessation of movement, requiring zero manual intervention.
- MECHANISM: Utilizes an advanced planetary ratchet system with full-tooth disc engagement. This ensures positive transmission and locking even after being subjected to loads of several hundred kilograms in the lock direction.
- DURABILITY: Constructed from high-strength carburized alloy steel, offering exceptional hardness and toughness to endure continuous motor-induced impacts exceeding 300 N·m.

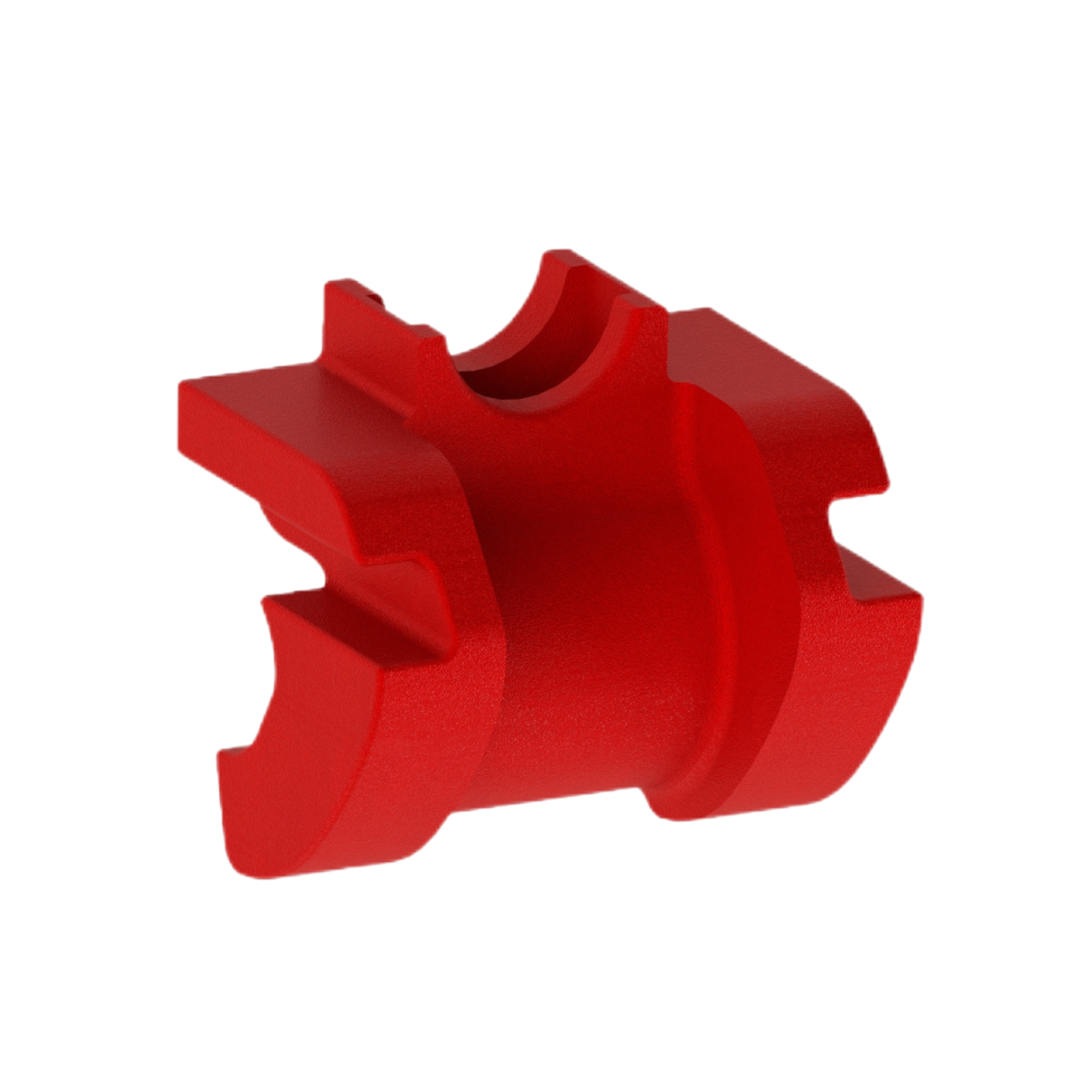

THE SAFETY LOCK
(Fail-Safe Guardian)
- DESIGN PRINCIPLE: A simple yet highly reliable failsafe mechanism that complies with international safety standards.
- OPERATION: Synchronizes with the movable jaw to positively lock both main spindles simultaneously.
- RESULT: This triple-redundant system achieves 99.9% operational safety, guaranteeing prevention of bucket or hammer detachment under all working conditions.
RELIABLE: ALL-WEATHER DURABILITY
Built for storms, mud, and dust.
Waterproof & AntiCorrosion
IP67 waterproof motor + corrosion-resistant coatings ensure reliable operation in storms, mud, dust, and saltwater environments.
Sand/Mud-Resistant Protection
Sand-resistant shields and fully sealed electronics guarantee non-stop performance in the toughest environments.
Extreme Temperature Resilience
Engineered to operate seamlessly across a -40°C to over 150°C range, critical components maintain structural integrity and functionality.
SIMPLE: 10-MINUTE QUICK INSTALLATION
Requires only a power cable connection—no hydraulic lines needed. No expert assistance required. Plug-and-play wireless controller compatible with global 12V power standards.
- Power Connection: Install the wireless control box near the battery (12V).
- Wire Routing: Connect the main cable to the coupler.
- Remote Pairing: Sync the remote for wireless operation.
- Testing: Ensure automatic locking and force distribution.

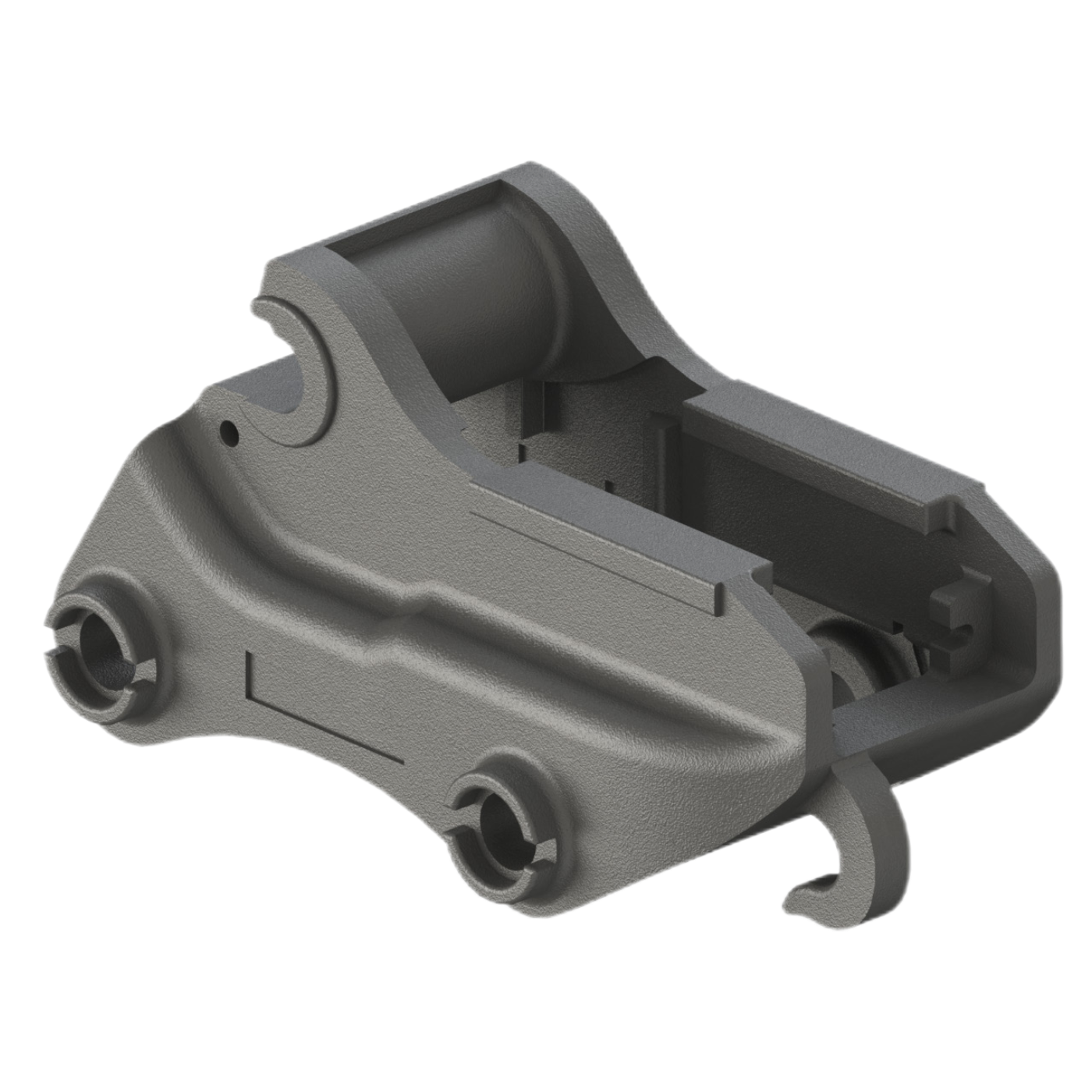

STRONG: MILITARY-GRADE STRUCTURAL STRENGTH
The YUNL coupler’s integrally cast high-strength steel body ensures military-grade resilience, even in the harshest excavation environments.
Integral Casting
Seamless single-piece design eliminates weak points from welds or joints.
High-Strength Steel
Engineered for extreme load-bearing capacity and resistance to deformation.
Tri-support Push Structure
Disperses 85% of impact force to the housing – eliminating shaft fracture risks
Durability
Heat-treated to withstand 4x more impact than traditional couplers.

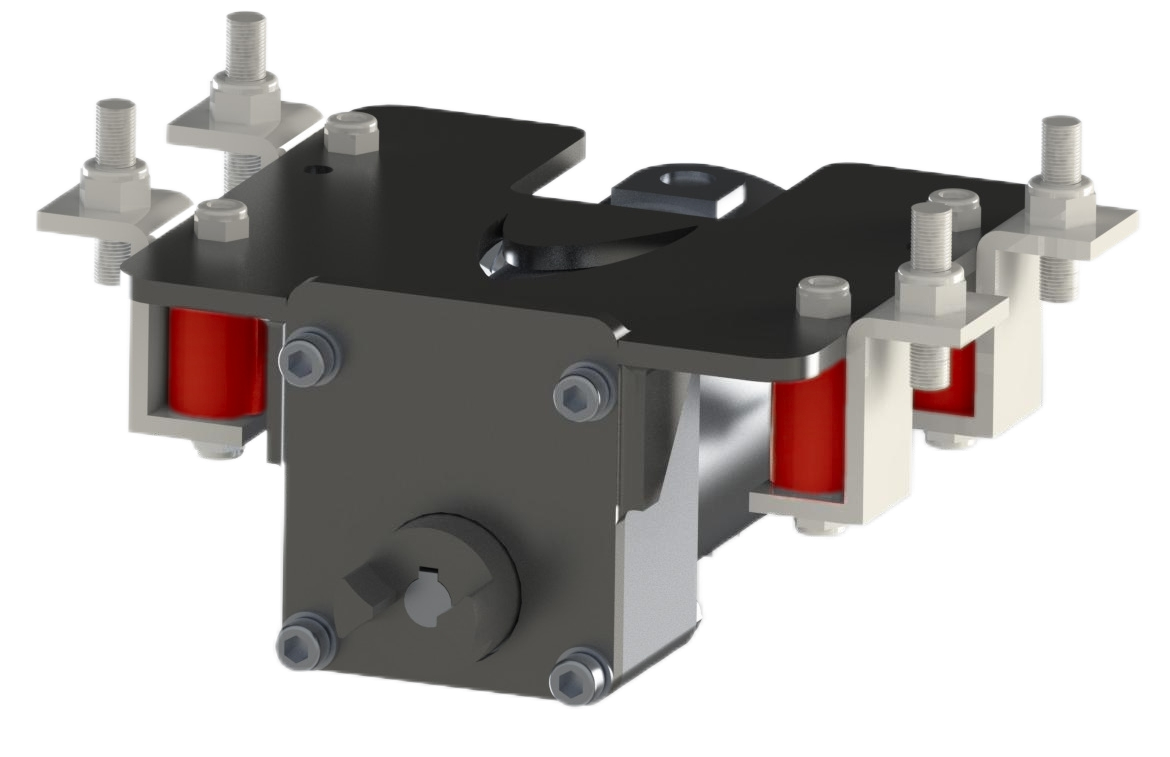

SHOCK ABSORPTION TECH
Automotive-grade shock absorption system: Converts high-frequency vibrations into low-frequency waves to extend component lifespan.
SMART: YUNL INTELLIGENT CONTROLLER
Self-defending controller: Stops electrical threats + diagnostic beeps translate failures. Laughs at storms. For all Machines.
Industrial-grade protection against shorts, overvoltage, overheating, and phase loss. Diagnostic buzzer decodes errors instantly. IP67 waterproof, handles -40°C to 150°C extremes, and adapts to global 12-24V systems. Proactive defense. Zero guesswork.
- Quad-layer electrical protection
- Error-alert buzzer system
- Extreme environment resilience
- Universal voltage compatibility
- Simplified diagnostics
Technical Specification
| Category | Unit | Model X6-02 | Model X6-04 |
|---|---|---|---|
| Pin Diameter | mm | 45/50 | 45/50 |
| Length (C) | mm | 540±5 | 565±5 |
| Width (B) | mm | 240±5 | 280±5 |
| Height (G) | mm | 299±5 | 305±5 |
| Arm Opening (A) | mm | 155–180 | 195–220 |
| Pin Center Distance (D) | mm | 245–265–285 | 310 |
| Pick Up Range (E) | mm | 245–310 | 265–350 |
| Vertical Offset (F) | mm | 172±2 | 178±2 |
| Coupler Weight | kg | 65 | 67 |
| Operating Voltage | V | 12/24V | 12/24V |
| Machine Weight | Ton | 5–7 | 6–8 |
Ultra-Compact Design
- Compact & Streamlined: 30% smaller than hydraulic couplers—perfect for mini excavators and tight spaces.
- Universal Compatibility: Adapts to 245–350mm center distances across major brands (CAT, Komatsu, Volvo).
- Circuit Protection: Phase Loss + Short Circuit + Overload + Overvoltage + Overheat Protection
Contact for Customization:
✉️ Sales@hmattachment.com
Warranty
YUNL Electric Coupler Warranty Coverage
| Component | Warranty Period | Coverage Details |
|---|---|---|
| Cast Steel Housing | 12 Months | 12-month replacement for cracks caused by product defects. Exclusions: Damage due to improper operation, unauthorized modifications (e.g., welding, heat treatment). |
| Brushless Motor | 12 Months | 12-month replacement for motor housing cracks. 18-month repair service (parts fee applies). Exclusions: Damage from incorrect wiring, voltage mismatch, water ingress due to poor maintenance, or unauthorized disassembly. |
| Self-Locking Screw | 12 Months | 12-month replacement for fractures caused by defects. 18-month repair service (parts fee applies). Exclusions: Damage from improper use, rust due to damaged protective sleeves. |
| Self-Locking Clutch | 12 Months | 12-month replacement for defects. 18-month repair service (parts fee applies). Exclusions: Normal wear and tear, rust from damaged sleeves. |
| Auto-Lock Block | Lifetime | Lifetime replacement for defects (includes safety pins and push mechanisms). Shipping costs borne by the customer. |
| Wireless Controller | 12 Months | 12-month replacement for defects. 18-month repair service (parts fee applies). Exclusions: Damage from incorrect wiring, voltage mismatch, water ingress, or unauthorized repairs. |
| Damping Rubber | 6 Months | 6-month replacement for cracks caused by defects. |
| Motor Bracket | 6 Months | 6-month replacement for defects. 12-month repair service. |
| Pins | 6 Months | Exclusions: Bent/twisted pins, wear exceeding 3mm, or damage due to lack of lubrication. |
Important Notes:
- The warranty covers only defects in the coupler itself.
- YUNL is not liable for indirect losses (e.g., downtime, labor injuries) caused by product defects or other factors.
Upgrade & Support:
- All YUNL couplers are eligible for modular upgrades (e.g., auto-oil guide system).
- Free return shipping for upgrades. Discounts apply for retrofits.
Contact Service:
✉️ Service@hmattachment.com
Shipping & Payment
YUNL Global – Clear Policies for Smooth Transactions
Shipping Terms
1. Delivery Methods
- Standard Shipping: Sea freight (FOB/CIF terms negotiable).
- Express Options: Air freight or courier (DHL/FedEx) available for urgent orders (costs borne by the buyer).
2. Lead Time
- Production Time: 3–30 days after order confirmation.
- Shipping Time:
- Sea Freight: 20–45 days (varies by destination).
- Air Freight: 3–7 days.
3. Responsibilities
- FOB (Free On Board): YUNL covers costs until goods leave the origin port. Buyer handles freight, insurance, and import duties.
- CIF (Cost, Insurance, Freight): YUNL arranges shipping and insurance to the destination port. Buyer handles import duties and inland transport.
4. Tracking & Documentation
- Real-time tracking provided via email.
- Documents include: Commercial Invoice, Packing List, Bill of Lading/Airway Bill, and Certifications.
5. Customs & Taxes
- Buyer is responsible for all import duties, taxes, and clearance fees.
- YUNL provides HS codes and product descriptions to expedite clearance.
6. Delays & Loss/Damage
- Delays due to force majeure (e.g., weather, strikes) exempt YUNL from liability.
- Insurance is mandatory for CIF shipments. Claims must be filed within 7 days of delivery.
Payment Terms
1. Accepted Methods
- Bank Transfer (T/T): Preferred method.
- 30% deposit upfront, 70% balance before shipment.
- PayPal/Credit Card: Available for orders <$5,000 (3% processing fee applies).
2. Currency
- USD, EUR, or GBP (conversion at the exchange rate on the payment date).
3. Refunds & Cancellations
- Deposits: Non-refundable if production has started for customized orders.
- Cancellations: Allowed within 48 hours of order confirmation. After 48 hours, a 15% cancellation fee applies.
4. Late Payments
- 1.5% monthly interest charged on overdue balances.
- Orders unpaid for 30 days will be canceled, and deposits forfeited.
Key Notes
- MOQ: 10 units for new partners.
- Sample Orders: 50% prepayment for samples (deductible from future bulk orders).
- Warranty Claims: Replacement parts shipped within 7 days after approval.
